Bafang BBS02B 750W 48V Motor Kit with 500C Colour Display
AFTER PURCHASING PLEASE CONTACT ME AND TELL ME IF YOU NEED STICK ON BRAKE SENSORS FOR HYDRAULIC BRAKES OR BRAKE LEVERS WITH BUILT IN SWITCH FOR CABLE OPERATED BRAKES.
FREE INSTALLATION TOOLS AND FRONT LIGHT
(operated from the control panel)
We add additional high quality Mobil Aviation SHC 100 Synthetic Red Lithium Grease to the secondary reduction gears before dispatching motor kits.
BRAND NEW BOXED UN-USED
E-Bike kit
We have been using these great little motors for doing ebike conversions for some time so we have decided to start selling them as a ready to fit kit.
The Bafang BBS02B 48V 750 watt motor kit offers a good combination of strong torque, high efficiency with low power consumption and low noise output.
The mid drive motor transfers power through the bikes gears, meaning the motor can operate within its optimum RPM range which is ideal for hill climbing.
Never worry about a hill again!!
Pedal assist set from 0 to 9 or throttle control
The Bafang kits can be fitted to standard bike frames through a simple installation process.
Included is everything that you need to convert your bike into a high spec mid drive e-bike.
Dispatched from the UK.
Bike should have standard bottom bracket not exceeding 73mm.
Installation Spanner/Tool for Bafang/8Fun BBS02, is included.
It makes for simple installation and is useful if you need to re-tighten the motor.
I AM HAPPY TO SUPPLY INSTALLATION SUPPORT IF NEEDED AS I HAVE INSTALLED MANY OF THESE MOTORS
ALSO HAPPY TO ANSWER ANY TECHNICAL QUESTIONS.

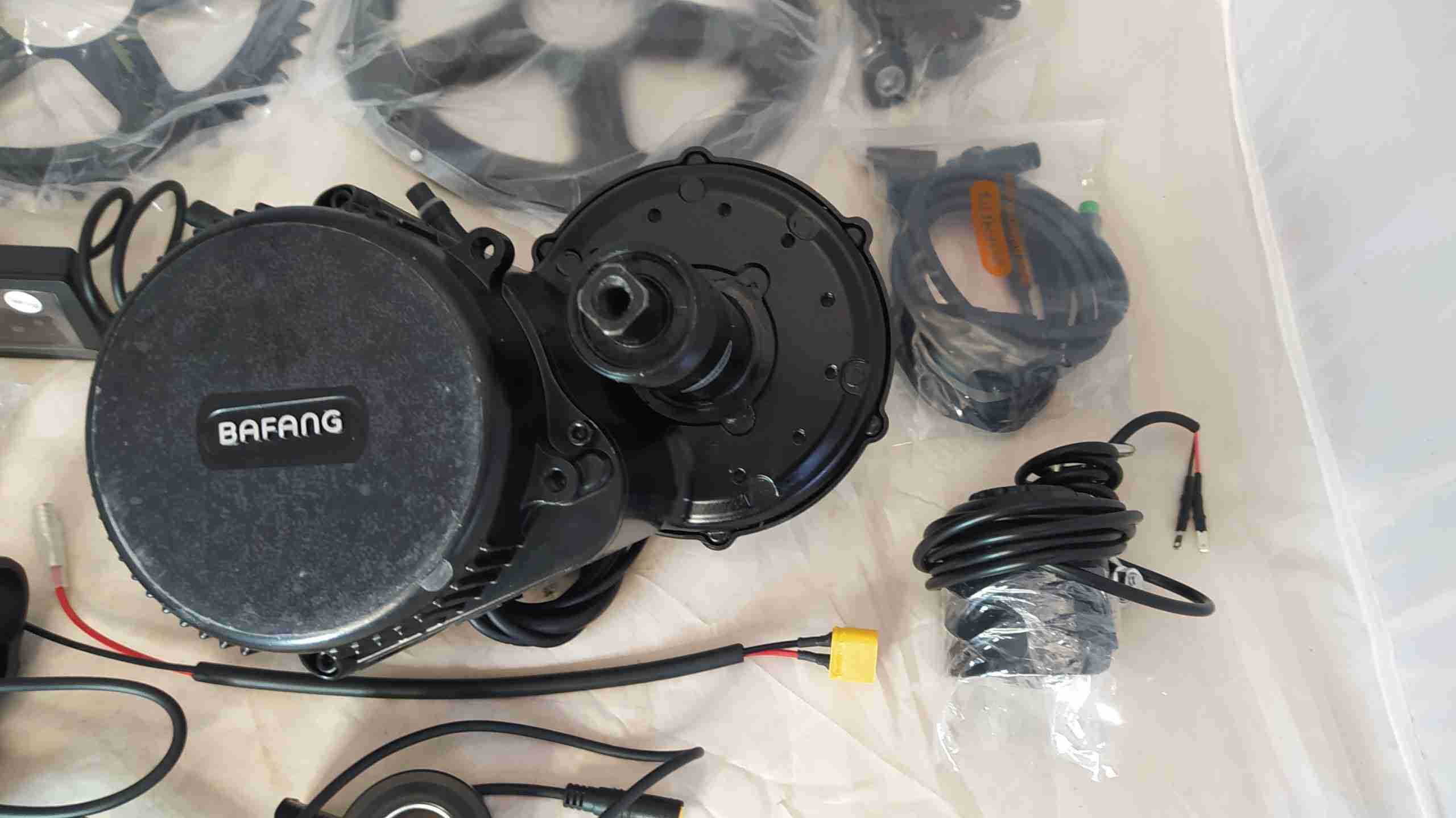

Included in package

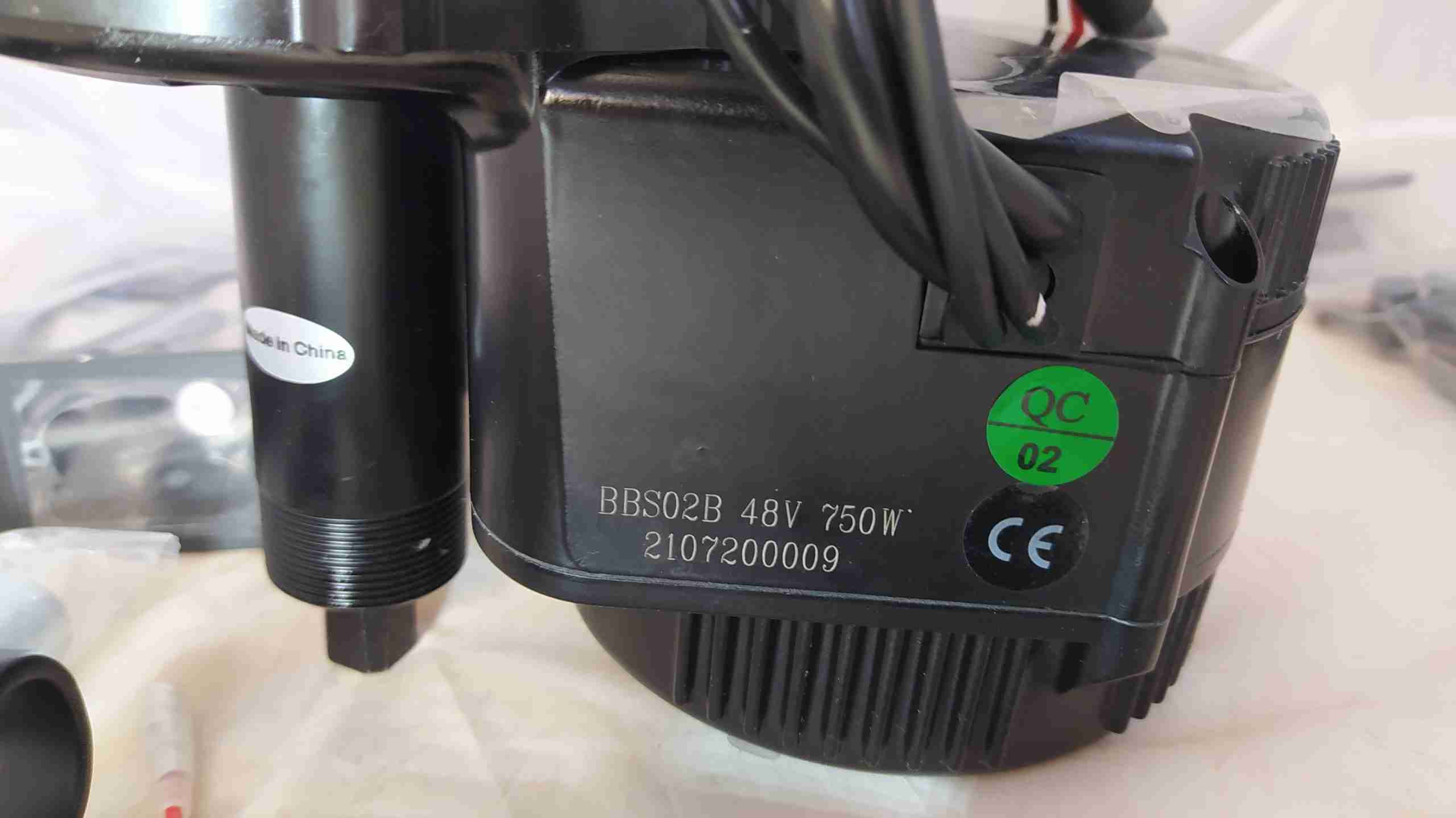

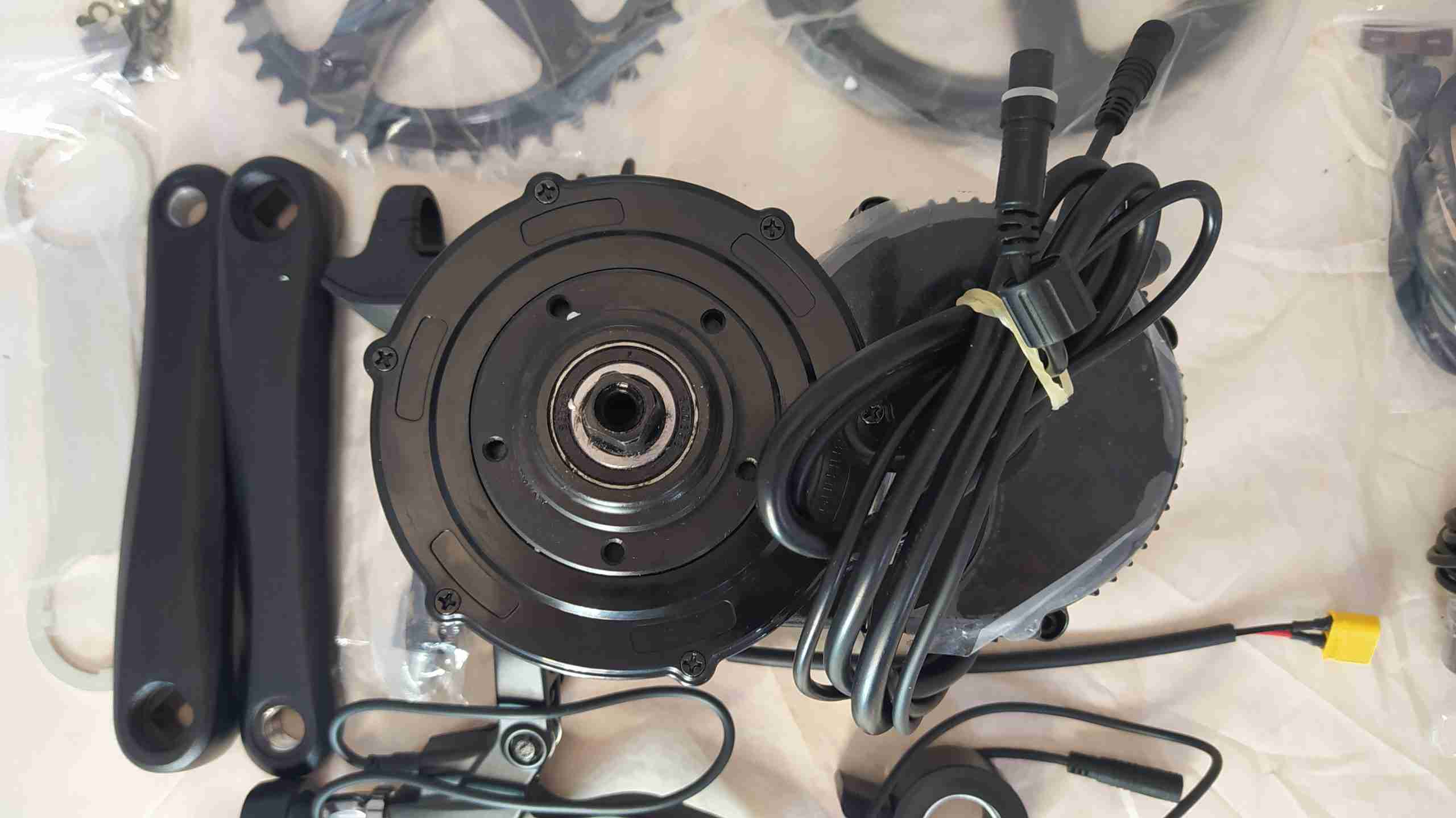

BAFANG BBS02B 750W 48V MID DRIVE MOTOR
MOTOR MOUNTING KIT

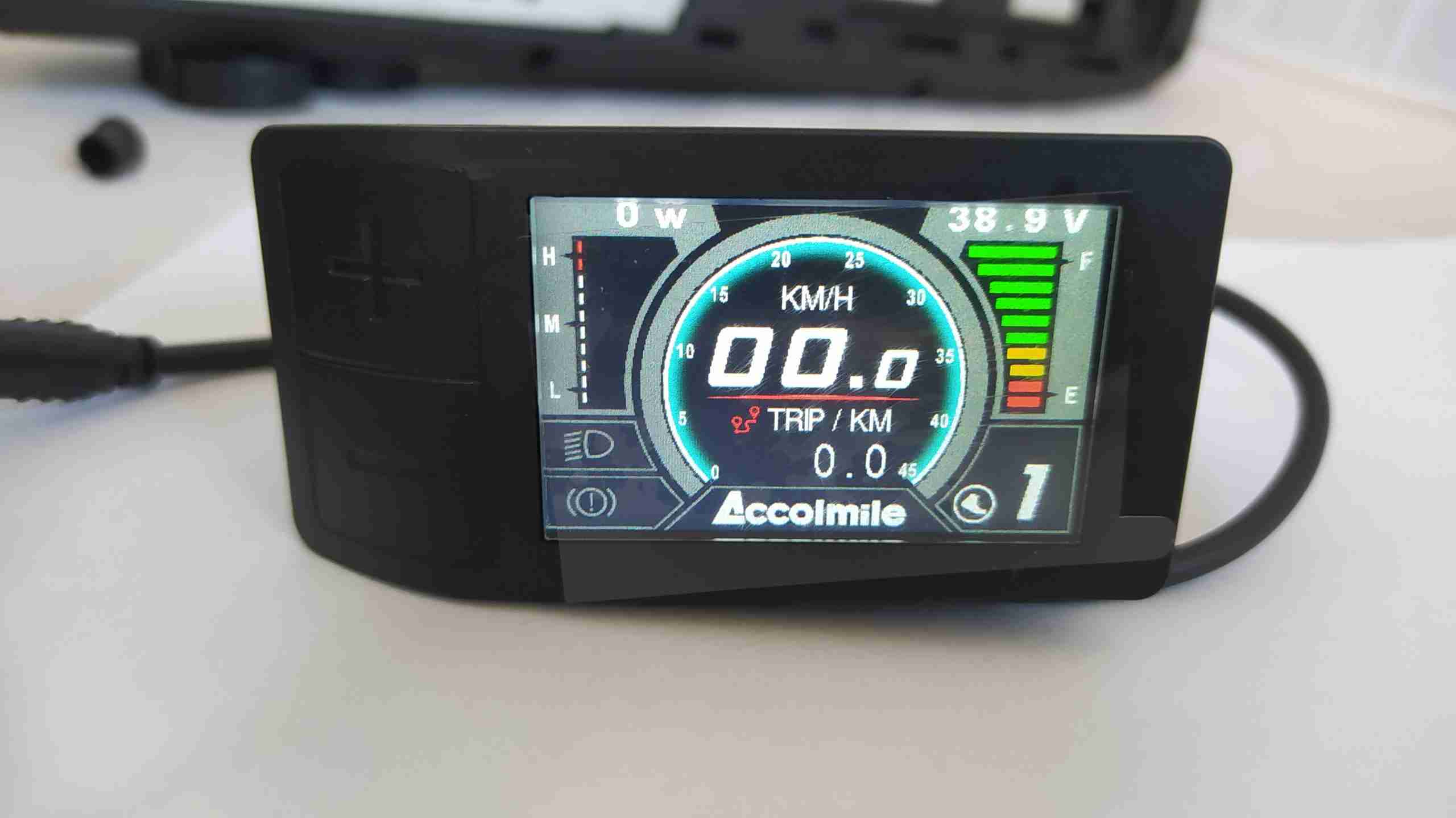

500C COLOUR DISPLAY
MAGNETIC SPEED SENSOR
THUMB THROTTLE

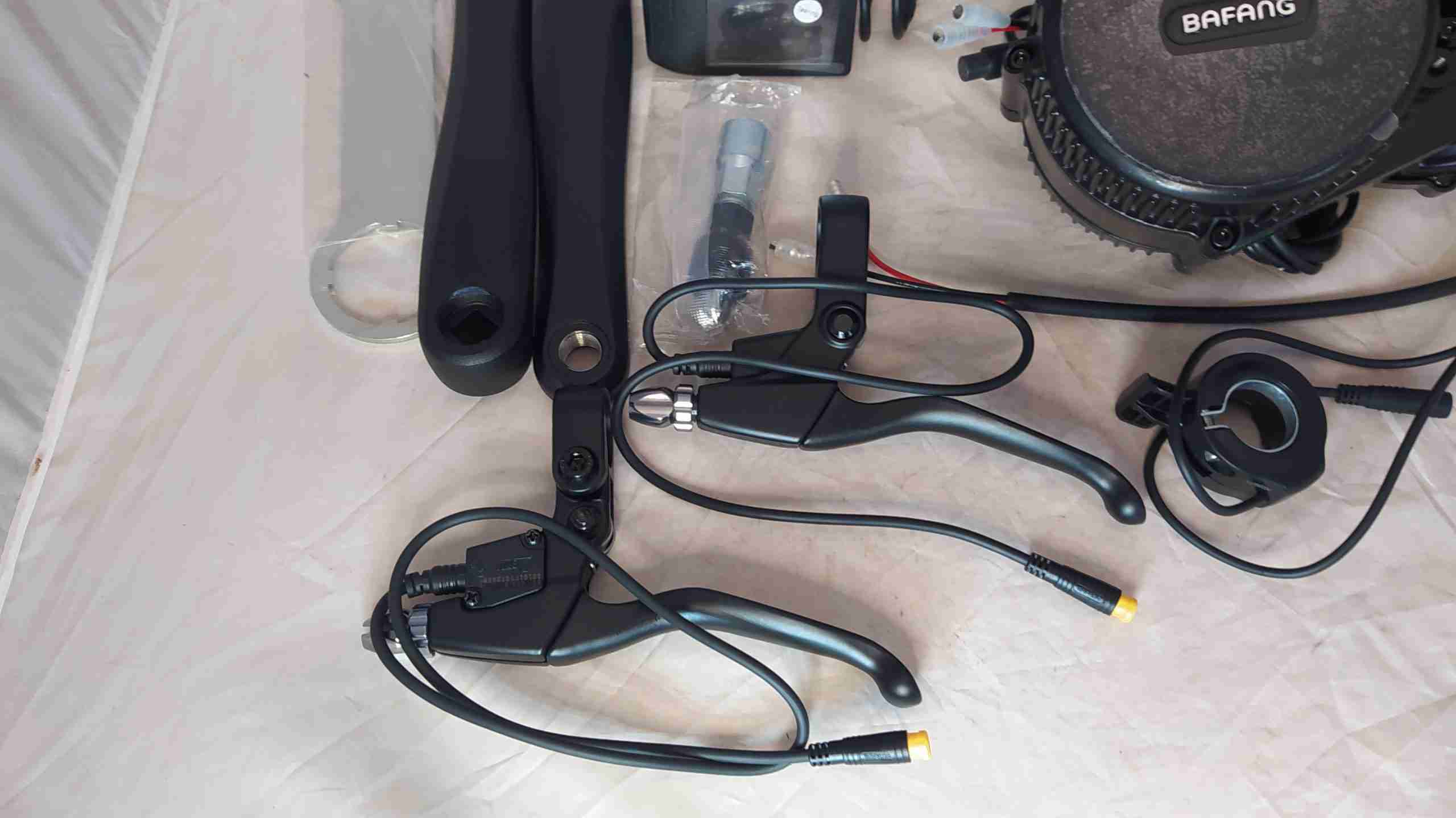

BRAKE LEVERS WITH SWITCHES (FOR CABLE BRAKES) OR
SENSORS AND MAGNETS (FOR HYDRAULIC BRAKES) PLEASE SPECIFY WHICH WHEN PURCHASING

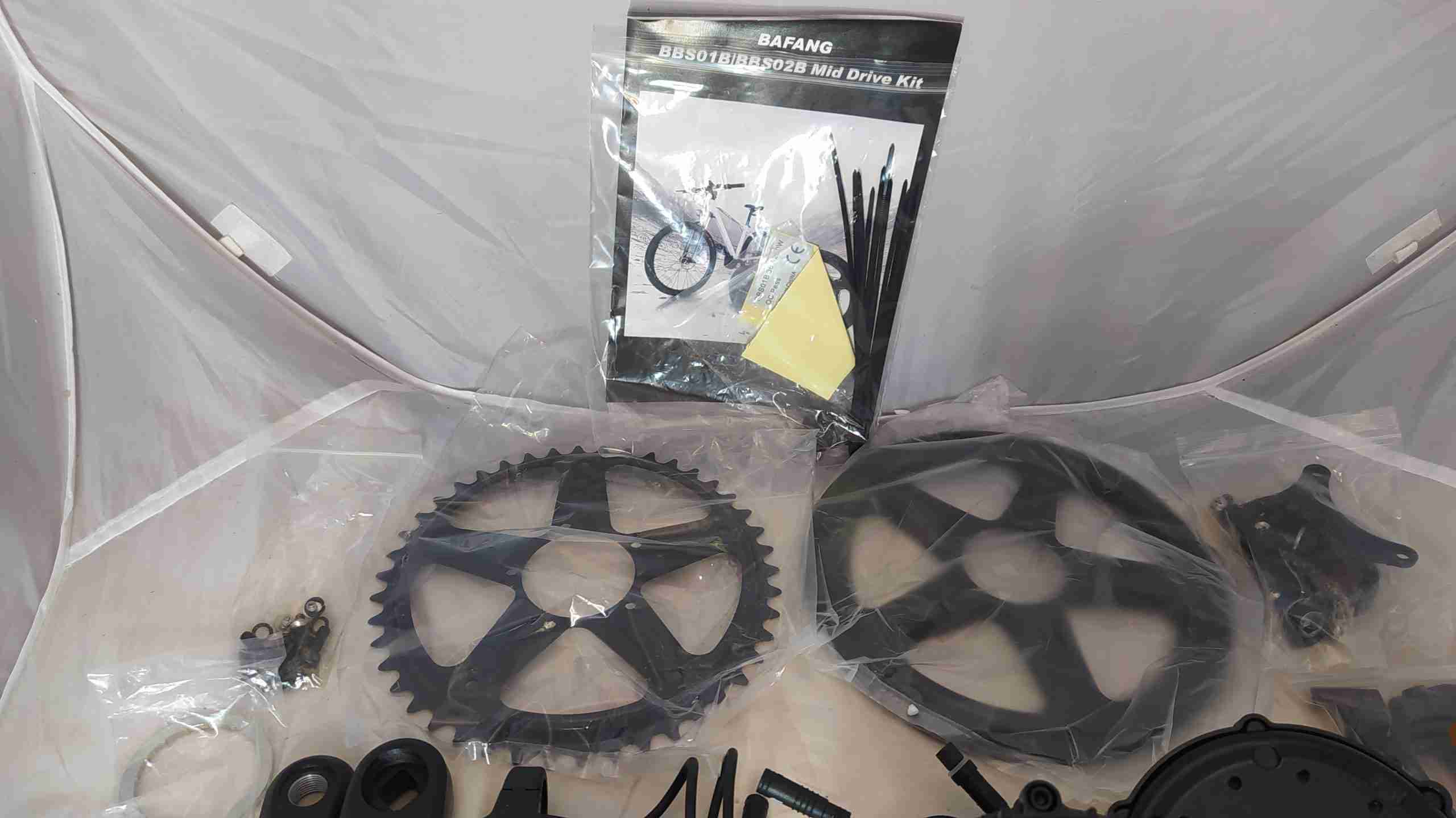

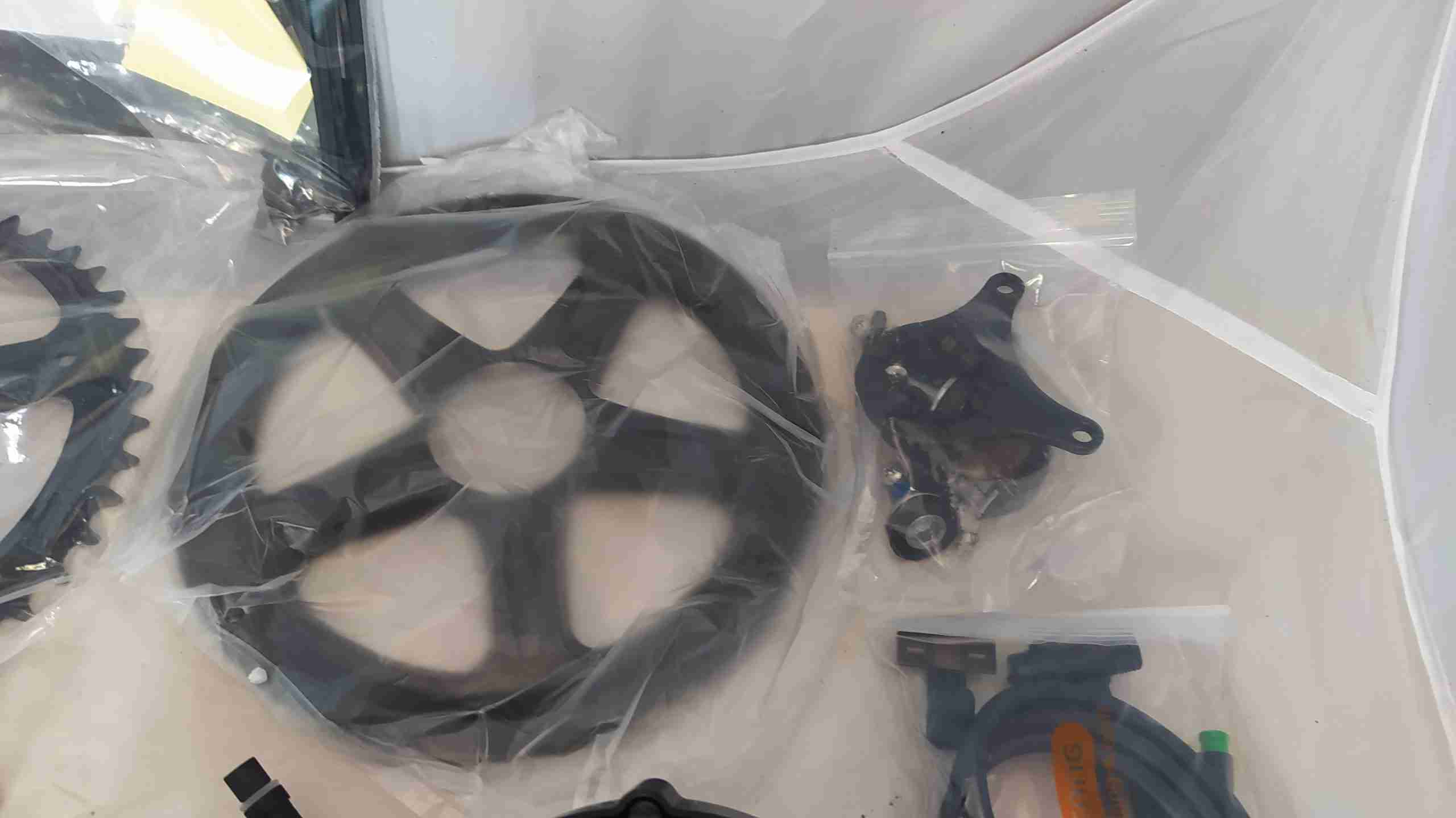

44 TOOTH FRONT CHAINWHEEL & GUARD

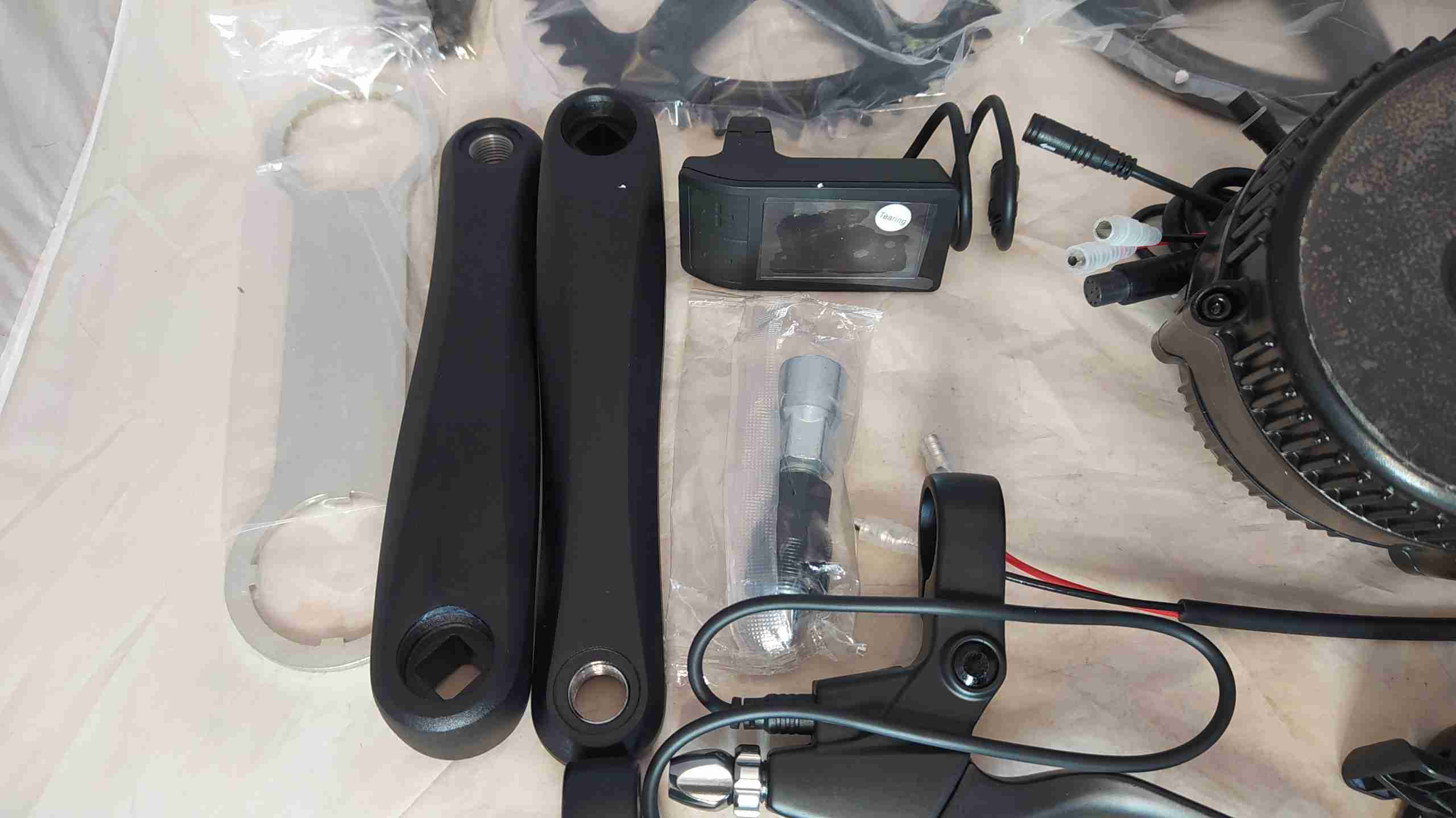

2X PEDAL CRANK ARMS
CONNECTING CABLES
FRONT LIGHT
ZIP TIES
MOTOR SPANNER
CRANK REMOVAL TOOL
MANUALS & INSTRUCTIONS
1 year manufacturer’s warranty
Brand: Bafang
Model: BBS02B
Type: Brushless Gear Motor
Rated Voltage (DCV): 48
Rated Power (W): 750
Max Torque: 160 N.m
Weight: 4.5Kg
Position: Mid Crank
Controller Position: Integrated Inside the Motor
Motor Bracket Bottom Length:68mm (bottom bracket width shall be 68-73mm)
Noise Grade (dB): < 55
Operating Temperature: -20-45℃
Waterproof Grade: IP65
Certification: CE/EN/ROHS
Salt Spray Test Standard(h): 96
This mid-drive motor, which is compatible with standard bikes, has a rated power of 750W and a maximum torque of 160 N.m, providing ideal power for vehicles. Light but strong and efficient,
this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes.
PLEASE NOTE THAT THIS IS A 750 WATT KIT AND AS SUCH IT IS NOT LEGAL FOR UK ROAD USE.
WE TAKE NO RESPONSIBILITY FOR HOW OR WHERE YOU USE YOUR MOTOR
